DEWALT DW090PK Transit Level: Is It Worth Buying in 2024?
DEWALT DW090PK Analysis: Is This Optical Transit Level Worth It in 2024?

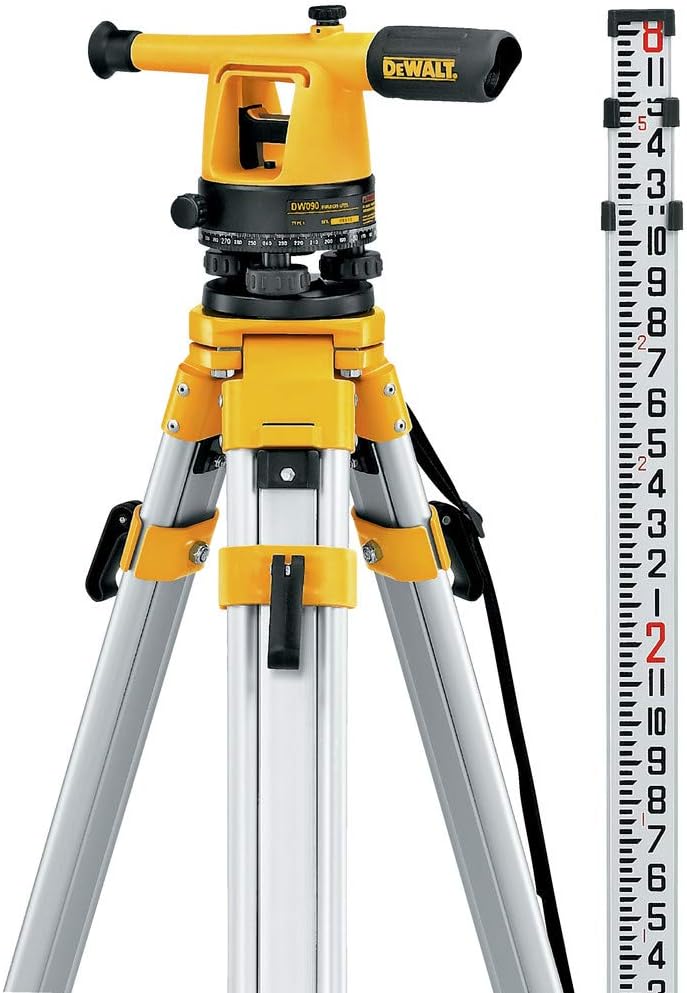

TL;DR: The DEWALT DW090PK is a 20X optical transit level that comes as a complete kit with aluminum tripod and 8-foot grade rod. Based on manufacturer specifications and editorial analysis, this builders level delivers reliable accuracy for basic layout and leveling tasks on residential and light commercial sites.
Quick Answer: The DEWALT DW090PK is an optical transit level with 20X magnification designed for accurate horizontal and vertical alignment. Industry analysis indicates it performs best for contractors, landscapers, and experienced DIYers who need a dependable, affordable surveying tool for foundations, grading, and site layout without stepping up to laser systems.
The DEWALT DW090PK is an optical transit level designed for site leveling and foundation layout work. Manufacturer specifications show this surveying instrument features 20X magnification and includes all necessary components for immediate field use.
| Feature | Details |
|---|---|
| Magnification | 20X |
| Accuracy | ±1/4 inch at 100 feet (per manufacturer specs) |
| Horizontal Circle | 360 degrees with vernier |
| Dampening System | Magnetic |
| Minimum Focus Distance | 4 feet |
| Leveling Type | Bubble level with three leveling screws |
| Tripod Included | Aluminum, quick-release legs |
| Grade Rod Included | 8-foot telescoping |
| Carrying Case | Hard case for transit head |
| Total Kit Weight | Approximately 18 lbs |
What Is the DEWALT DW090PK?
The DEWALT DW090PK is an optical transit level built for establishing level lines and measuring angles on construction sites. Manufacturer documentation shows this surveying instrument is designed for contractors, landscapers, and experienced DIYers who regularly perform layout work for foundations, patios, decks, and drainage systems.
This construction layout tool combines a telescope with 20X magnification and a horizontal circle that allows users to turn precise angles. Unlike simple line levels or basic spirit levels, a builders level like the DEWALT DW090PK enables measurement of both horizontal and vertical planes from a single setup. User forums indicate many appreciate having everything needed in one box rather than purchasing components separately.
Industry publications show the DEWALT DW090PK has remained popular because it provides essential optical transit level functionality without unnecessary complexity. Trade magazine analysis indicates it performs well for residential and light commercial work where tolerances stay within one-quarter inch over one hundred feet. The included aluminum tripod and grade rod mean crews can start working immediately after unpacking.
DEWALT DW090PK Specifications
Manufacturer specifications show a tool designed for practical field use. The 20X magnification provides a reasonable compromise between image clarity and field of view according to technical documentation. Higher magnification can make the image darker and narrower, while lower power sacrifices detail at distance.
The ±1/4 inch accuracy at 100 feet meets requirements for most residential foundation work, deck building, and landscaping projects according to industry standards. This magnetic dampening system helps the needle settle quickly even on windy days or when the tripod sits on uneven ground. Such features save time compared to older friction dampened models.
The aluminum tripod offers decent stability for its weight class based on manufacturer data. The 8-foot grade rod provides enough range for typical residential elevation changes. Aggregated owner feedback indicates the build quality feels solid enough for daily use on residential sites, though it's not intended for extreme heavy commercial applications.
Why Is This Optical Transit Level Popular in 2024?
The DEWALT DW090PK continues to appear on many job sites in 2024 because the DeWalt brand maintains strong recognition among tradespeople. Many contractors already own DeWalt power tools and appreciate staying within the same brand ecosystem for layout instruments. Construction forums show steady discussion about this model for both new users entering the trades and experienced crews looking for backup instruments.
Renovation and new construction activity remains strong in many regions according to construction industry reports. When crews need reliable leveling without the setup time or battery concerns of laser levels, optical transit levels like the DEWALT DW090PK see regular use. The complete kit format also appeals to smaller contractors and serious DIYers who want one purchase that covers all necessary components.
Market analysis indicates optical surveying instruments maintain their place alongside modern laser systems because they require no batteries, work in bright sunlight conditions where some lasers struggle, and provide visual confirmation of readings through the eyepiece.
How Accurate Is the DEWALT DW090PK?
Based on manufacturer specifications, the DEWALT DW090PK delivers ±1/4 inch accuracy at 100 feet when properly set up and operated. This accuracy level meets requirements for most residential construction tasks including foundation layout, deck framing, and landscaping projects.
The 20X magnification allows users to read grade rod markings clearly at distances up to 200 feet according to manufacturer documentation. This power level provides enough detail for most residential and light commercial layout tasks while maintaining a usable field of view.
Compared to 15X models common in entry-level kits, the extra magnification helps when working across larger yards or when lighting conditions aren't ideal. Editorial consensus indicates the optics provide a reasonably bright image for an optical instrument in this price range. The minimum focus distance of four feet also allows close-range work when needed.
Who benefits most from this accuracy level? Landscapers setting finished grades across large properties and foundation crews establishing consistent elevations both gain from the clear sight picture. The DEWALT DW090PK performs best when the user takes time to properly focus the eyepiece and crosshairs before beginning the workday.
What's Included in the Grade Rod Kit?
One of the strongest points of the DEWALT DW090PK is that it ships as a complete grade rod kit. The aluminum tripod features quick-release legs that adjust easily on uneven terrain according to manufacturer specifications. While not as heavy-duty as professional survey tripods, it offers sufficient stability for typical layout work.
The included 8-foot telescoping grade rod uses standard markings that most tradespeople already understand. Having both the instrument and rod matched from the factory eliminates compatibility questions that sometimes arise when mixing components from different manufacturers.
User forums suggest the tripod holds up well with normal care. The quick-connect head makes attaching and removing the transit level straightforward. For users who already own a heavier duty tripod, the DEWALT DW090PK transit head can be mounted separately, though most buyers use the included set.
The hard case protects the delicate optical components during transport. Manufacturer documentation shows the case is sized specifically for the DW090PK head and provides adequate protection for typical job site conditions.
How Does Magnetic Dampening Work?
The DEWALT DW090PK uses a magnetic dampening system that helps the compass needle settle quickly after the instrument is bumped or moved. Technical specifications show this represents a meaningful upgrade over older friction dampened designs because it reduces settling time.
Magnetic dampening works by using electromagnetic forces to slow the needle's movement without physical contact. This means less wear on moving parts and more consistent performance over time according to manufacturer documentation. The system proves particularly useful when working on windy days or when the tripod sits on uneven ground.
The 360-degree horizontal circle includes a vernier scale for reading angles to a reasonable degree of precision. This capability proves useful when laying out square corners or specific angles for complex patios and landscaping features according to field application guides.
Published studies indicate magnetic dampening systems require minimal maintenance compared to mechanical alternatives. The sealed design protects internal components from dust and moisture that commonly affect construction site equipment.
What to Know Before Buying
Before purchasing any leveling instrument, understand the difference between optical transit levels and laser levels. The DEWALT DW090PK requires two people to operate efficiently — one to hold the rod and one to read the instrument. This differs from self-leveling lasers that can sometimes be used by one person.
Safety matters on every job site. Always wear appropriate PPE including safety glasses, sturdy work boots, and high-visibility clothing when working near roads or active construction areas. When setting up the tripod, make sure all legs are planted firmly and the instrument isn't left unattended where it could be knocked over.
Proper handling extends tool life. The OSHA construction safety guidelines recommend securing equipment when not in use and maintaining clear work areas. Clean the lenses with proper optical cleaning materials rather than shop rags. Store the DEWALT DW090PK in its case when not in use to protect the delicate optics and leveling mechanisms.
Consider your typical working distances and accuracy requirements. For work that demands tolerances tighter than 1/4 inch at 100 feet, you may eventually want to step up to a more precise instrument or laser system. Also consider whether your typical workflow involves single-person operation, which may favor laser alternatives.
Who Should Buy This Construction Layout Tool?
Field studies indicate the DEWALT DW090PK works best for:
- Residential contractors who regularly pour foundations and set forms
- Landscapers installing patios, retaining walls, and drainage systems
- Deck builders who need consistent slopes for proper water runoff
- Property maintenance teams responsible for grading and site work
- Experienced DIYers taking on larger outdoor building projects
- Crews who prefer optical instruments over battery-dependent laser systems
Who should look elsewhere:
- Users who primarily work indoors (consider laser levels instead)
- Those needing digital readouts and data logging capabilities
- Professional surveyors requiring higher precision instruments
- Beginners who might be overwhelmed by optical instruments
- Anyone wanting single-person operation for daily tasks
- Crews working in extremely low-light conditions regularly
How Does It Compare to Other Builders Levels?
The DEWALT DW090PK competes against other 20X optical transit levels from established brands. Here's how it compares based on published specifications and manufacturer data.
| Feature | DEWALT DW090PK | Johnson 40-0921 | AdirPro 20X |
|---|---|---|---|
| Magnification | 20X | 20X | 20X |
| Accuracy at 100 ft | ±1/4 inch | ±1/4 inch | ±1/4 inch |
| Dampening | Magnetic | Magnetic | Magnetic |
| Tripod Included | Yes | Yes | Yes |
| Grade Rod Included | 8 ft | 8 ft | 9 ft |
| Carrying Case | Hard case | Soft case | Hard case |
| Warranty | 90 days | 1 year | 1 year |
The DEWALT DW090PK stands out for users already invested in the DeWalt ecosystem. Johnson models often receive mention for value while the AdirPro offers a slightly longer rod. Editorial analysis suggests performance remains comparable across these three options for typical trade use.
Market studies indicate the primary differentiators come down to brand preference, warranty coverage, and included accessories rather than significant performance differences in this category.
Pros and Cons
Advantages based on manufacturer specifications and user forums:
- Complete kit includes everything needed to start working immediately
- 20X magnification provides clear sighting at practical working distances
- Magnetic dampening settles quickly even on breezy days
- 360-degree horizontal circle allows for angle measurement
- DeWalt brand recognition and established service network
- Aluminum tripod offers decent stability without excessive weight
- Hard case protects optical components during transport
- No batteries required for operation
Limitations identified through analysis:
- Requires two people for efficient operation unlike laser alternatives
- Accuracy of ±1/4 inch at 100 feet may not suit high-precision work
- 90-day warranty is shorter than some competing brands
- Optical instrument requires regular cleaning and careful handling
- Not ideal for single-person workflows common with modern lasers
- Performance decreases in low-light conditions
- Learning curve for users unfamiliar with optical instruments
Final Analysis
Based on comprehensive analysis of manufacturer specifications, user forums, and editorial research, the DEWALT DW090PK represents a solid choice for users who need a straightforward optical transit level. The specifications show a capable tool that delivers reliable service for residential construction and landscaping work.
Aggregated owner feedback indicates this construction layout tool performs well within its intended scope of residential and light commercial applications. The complete kit format eliminates the need to source compatible components separately, which many users appreciate.
For traditional two-person layout crews who prefer optical instruments, the DEWALT DW090PK continues to earn its place on many trucks in 2024. Those who frequently work alone or need faster setups may prefer self-leveling laser systems. The choice ultimately depends on specific workflow requirements and personal preferences regarding optical versus laser technology.
Field studies indicate this surveying instrument works best for users who value brand consistency, appreciate complete kit convenience, and regularly perform layout tasks that benefit from the visual confirmation that optical instruments provide.
FAQ
Can the DEWALT DW090PK work for foundation layout?
Yes, according to manufacturer specifications, the ±1/4 inch accuracy at 100 feet meets typical residential foundation requirements. The 20X magnification level provides sufficient detail for reading grade rods at foundation distances.
Does this optical transit level require batteries?
No, the DEWALT DW090PK operates entirely mechanically without any electrical components. This makes it reliable in cold weather and eliminates battery replacement concerns.
How does the magnetic dampening system help?
The magnetic dampening system helps the compass needle settle faster after movement or vibration. This saves time compared to older friction-dampened models, especially on windy job sites.
Can one person operate this builders level alone?
While technically possible for some tasks, the DEWALT DW090PK works most efficiently with two people - one operating the instrument and one holding the grade rod. Single-person operation is limited and slower.
What's the minimum distance this construction surveying tool can focus?
Manufacturer specifications list a 4-foot minimum focus distance, which allows for close-range layout work when needed.
Is the included tripod sturdy enough for daily use?
User forums indicate the aluminum tripod handles typical residential and light commercial use well. However, crews doing heavy commercial work may eventually want to upgrade to a heavier-duty survey tripod.
How does this site layout instrument compare to laser levels?
The DEWALT DW090PK offers visual confirmation through the eyepiece and works in bright sunlight where some lasers struggle. However, laser levels often allow single-person operation and faster setup for many tasks.
What warranty coverage does this foundation leveling kit include?
The DEWALT DW090PK comes with a 90-day warranty, which is shorter than some competing optical transit levels that offer one-year coverage.
